SonicBot

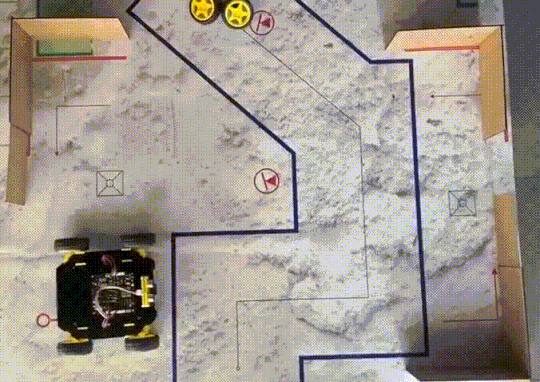

SonicBot detects objects by emitting sound waves around it thanks to the distance sensor on it and can perform different functions by using its mechanical properties according to the values it senses. You can avoid obstacles by using SonicBot. You can use SonicBot for tasks that require you to detect objects in the environment.
SonicBot Arduino C Code
//"""REX 8in1 Sonic Bot"""
//Check the web site for Robots https://rex-rdt.readthedocs.io/en/latest/
int trigPin = 17; // Trigger
int echoPin = 16; // Echo
long duration, cm;
//define speed of motors
#define SLOW 120
#define MID 140
#define FAST 110
//define pins of motors
#define MotorA1 15
#define MotorA2 23
#define MotorB1 32
#define MotorB2 33
#define MotorC1 5
#define MotorC2 4
#define MotorD1 14
#define MotorD2 27
//define buzzer pin named "horn"
#define horn 25
//setting PWM properties
const int freq = 50;
const int PWMchannel_1 = 4;
const int PWMchannel_2 = 5;
const int PWMchannel_3 = 6;
const int PWMchannel_4 = 7;
const int PWMchannel_5 = 8;
const int PWMchannel_6 = 9;
const int PWMchannel_7 = 10;
const int PWMchannel_8 = 11;
const int resolution = 8;
void setup() {
Serial.begin (115200); //make sure your Serial Monitor is also set at this baud rate.
pinMode(trigPin, OUTPUT);
pinMode(echoPin, INPUT);
pinMode(horn, OUTPUT);
pinMode(MotorA1, OUTPUT);
pinMode(MotorA2, OUTPUT);
pinMode(MotorB1, OUTPUT);
pinMode(MotorB2, OUTPUT);
pinMode(MotorC1, OUTPUT);
pinMode(MotorC2, OUTPUT);
pinMode(MotorD1, OUTPUT);
pinMode(MotorD2, OUTPUT);
ledcSetup(PWMchannel_1, freq, resolution);
ledcAttachPin(MotorA1, PWMchannel_1);
ledcSetup(PWMchannel_2, freq, resolution);
ledcAttachPin(MotorA2, PWMchannel_2);
ledcSetup(PWMchannel_3, freq, resolution);
ledcAttachPin(MotorB1, PWMchannel_3);
ledcSetup(PWMchannel_4, freq, resolution);
ledcAttachPin(MotorB2, PWMchannel_4);
ledcSetup(PWMchannel_5, freq, resolution);
ledcAttachPin(MotorC1, PWMchannel_5);
ledcSetup(PWMchannel_6, freq, resolution);
ledcAttachPin(MotorC2, PWMchannel_6);
ledcSetup(PWMchannel_7, freq, resolution);
ledcAttachPin(MotorD1, PWMchannel_7);
ledcSetup(PWMchannel_8, freq, resolution);
ledcAttachPin(MotorD2, PWMchannel_8);
delay(1500);
}
void loop() {
distance();
if (cm < 8) {
backward();
digitalWrite(horn, HIGH);
delay(100);
digitalWrite(horn, LOW);
delay(1);
left();
stop();
delay(100);
}
else
{
forward();
}
}
void forward() {
ledcWrite(PWMchannel_1, MID); //MotorA1
ledcWrite(PWMchannel_2, LOW); //MotorA2
ledcWrite(PWMchannel_3, MID); //MotorB1
ledcWrite(PWMchannel_4, LOW); //MotorB2
ledcWrite(PWMchannel_5, MID); //MotorC1
ledcWrite(PWMchannel_6, LOW); //MotorC2
ledcWrite(PWMchannel_7, MID); //MotorD1
ledcWrite(PWMchannel_8, LOW); //MotorD2
}
void right() {
ledcWrite(PWMchannel_1, LOW); //MotorA1
ledcWrite(PWMchannel_2, FAST); //MotorA2
ledcWrite(PWMchannel_3, FAST); //MotorB1
ledcWrite(PWMchannel_4, LOW); //MotorB2
ledcWrite(PWMchannel_5, LOW); //MotorC1
ledcWrite(PWMchannel_6, FAST); //MotorC2
ledcWrite(PWMchannel_7, LOW); //MotorD1
ledcWrite(PWMchannel_8, FAST); //MotorD2
delay(1000);
}
void left() {
ledcWrite(PWMchannel_1, LOW); //MotorA1
ledcWrite(PWMchannel_2, MID); //MotorA2
ledcWrite(PWMchannel_3, LOW); //MotorB1
ledcWrite(PWMchannel_4, MID); //MotorB2
ledcWrite(PWMchannel_5, MID); //MotorC1
ledcWrite(PWMchannel_6, LOW); //MotorC2
ledcWrite(PWMchannel_7, MID); //MotorD1
ledcWrite(PWMchannel_8, LOW); //MotorD2
delay(850);
}
void stop() {
ledcWrite(PWMchannel_1, LOW); //MotorA1
ledcWrite(PWMchannel_2, LOW); //MotorA2
ledcWrite(PWMchannel_3, LOW); //MotorB1
ledcWrite(PWMchannel_4, LOW); //MotorB2
ledcWrite(PWMchannel_5, LOW); //MotorC1
ledcWrite(PWMchannel_6, LOW); //MotorC2
ledcWrite(PWMchannel_7, LOW); //MotorD1
ledcWrite(PWMchannel_8, LOW); //MotorD2
}
void backward() {
ledcWrite(PWMchannel_1, LOW); //MotorA1
ledcWrite(PWMchannel_2, SLOW); //MotorA2
ledcWrite(PWMchannel_3, LOW); //MotorB1
ledcWrite(PWMchannel_4, SLOW); //MotorB2
ledcWrite(PWMchannel_5, LOW); //MotorC1
ledcWrite(PWMchannel_6, SLOW); //MotorC2
ledcWrite(PWMchannel_7, LOW); //MotorD1
ledcWrite(PWMchannel_8, SLOW); //MotorD2
delay(200);
}
void distance() {
delay(40);
digitalWrite(trigPin, LOW);
delayMicroseconds(5);
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);
duration = pulseIn(echoPin, HIGH);
cm = (duration / 2) / 29.1;
/*
Serial.print(cm);
Serial.print("cm");
Serial.println();
*/
}
SonicBot MicroPython Code
from machine import Pin, ADC, PWM
import time
from rex import HCSR04
#motorA
motor_A1 = PWM(Pin(15))
motor_A1.duty_u16(0)
motor_A2 = PWM(Pin(23))
motor_A2.duty_u16(0)
#motorB
motor_B1 = PWM(Pin(32))
motor_B1.duty_u16(0)
motor_B2 = PWM(Pin(33))
motor_B2.duty_u16(0)
#motorC
motor_C1 = PWM(Pin(5))
motor_C1.duty_u16(0)
motor_C2 = PWM(Pin(4))
motor_C2.duty_u16(0)
#motorD
motor_D1 = PWM(Pin(14))
motor_D1.duty_u16(0)
motor_D2 = PWM(Pin(27))
motor_D2.duty_u16(0)
buzzer = Pin(25, Pin.OUT)
sensor = HCSR04(trigger_pin=17, echo_pin=16, echo_timeout_us=10000)
#default motor speed
MotorSpeed = 50000
def forward(speed):
motor_A1.duty_u16(speed)
motor_A2.duty_u16(0)
motor_B1.duty_u16(speed)
motor_B2.duty_u16(0)
motor_C1.duty_u16(speed)
motor_C2.duty_u16(0)
motor_D1.duty_u16(speed)
motor_D2.duty_u16(0)
def stop():
motor_A1.duty_u16(0)
motor_A2.duty_u16(0)
motor_B1.duty_u16(0)
motor_B2.duty_u16(0)
motor_C1.duty_u16(0)
motor_C2.duty_u16(0)
motor_D1.duty_u16(0)
motor_D2.duty_u16(0)
def backward(speed):
motor_A1.duty_u16(0)
motor_A2.duty_u16(speed)
motor_B1.duty_u16(0)
motor_B2.duty_u16(speed)
motor_C1.duty_u16(0)
motor_C2.duty_u16(speed)
motor_D1.duty_u16(0)
motor_D2.duty_u16(speed)
def left(speed):
motor_A1.duty_u16(0)
motor_A2.duty_u16(speed)
motor_B1.duty_u16(0)
motor_B2.duty_u16(speed)
motor_C1.duty_u16(speed)
motor_C2.duty_u16(0)
motor_D1.duty_u16(speed)
motor_D2.duty_u16(0)
while True:
distance = sensor.distance_cm()
print(distance)
if distance > 12:
forward(MotorSpeed)
else:
backward(MotorSpeed)
buzzer.value(1)
time.sleep(0.3)
buzzer.value(0)
left(MotorSpeed)
time.sleep(0.2)
stop()
