ArmBot

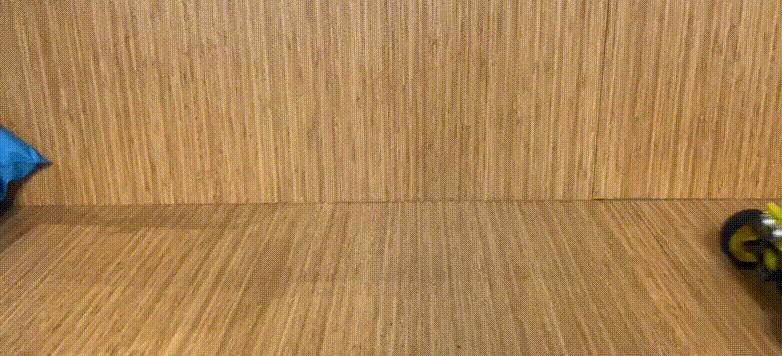

Introducing ArmBot, the amazing REX robot! 🚀🤖 ArmBot is equipped with a powerful robot arm 🤖💪, powered by 4 servo motors. With this ingenious feature, it can remotely control objects around it, making moving things from one point to another a breeze! 🎮📦 This incredible robot arm can move in 4 different axes: up, down, right, and left, making it super versatile and agile! 💨💨 It can easily reach even the most challenging objects that were once hard to access. 🎯🏆No matter where an item is located, ArmBot can swiftly reach it with precision and grace. Its remarkable remote control capabilities enable it to handle tasks efficiently and effortlessly. 🎮🚀 ArmBot is here to revolutionize the way we interact with our surroundings! Say hello to the future of efficient object manipulation with this fantastic robotic companion!
ArmBot Arduino C Code
//"""REX 8in1 Arm Bot"""
//Check the web site for Robots https://rex-rdt.readthedocs.io/en/latest/
#define CUSTOM_SETTINGS
#define INCLUDE_GAMEPAD_MODULE
#include <DabbleESP32.h>
#include <Arduino.h>
#include <ESP32Servo.h>
enum MOTOR_TYPE {
DC_MOTOR,
SERVO_MOTOR
};
enum MOTOR_TYPE motorType = DC_MOTOR;
//define Motor Pins
#define MotorA1 15 // Forward
#define MotorA2 23 // Backward
#define MotorB1 32 // Forward
#define MotorB2 33 // Backward
#define MotorC1 5 // Forward
#define MotorC2 4 // Backward
#define MotorD1 27 // Forward
#define MotorD2 14 // Backward
int position1 = 90;
int position2 = 90;
int position3 = 90;
int position4 = 90;
//define buzzer pin named "horn"
int horn = 25;
//define pins of servo motors
Servo Servo1; // Forward-Bakcward
Servo Servo2; // Right-Legt
Servo Servo3; // Up-Down
Servo Servo4; // Open-Close
void setup() {
ESP32PWM::allocateTimer(0);
ESP32PWM::allocateTimer(1);
ESP32PWM::allocateTimer(2);
ESP32PWM::allocateTimer(3);
Servo1.setPeriodHertz(50);
Servo2.setPeriodHertz(50);
Servo3.setPeriodHertz(50);
Servo4.setPeriodHertz(50);
//defined active pins
pinMode(horn, OUTPUT);
Servo1.attach(2, 600, 2500);
Servo2.attach(26, 600, 2500);
Servo3.attach(18, 600, 2500);
Servo4.attach(19, 600, 2500);
//first positions of servo motors
Servo1.write(position1);
Servo2.write(position2);
Servo3.write(position3);
Servo4.write(position4);
pinMode(MotorA1, OUTPUT);
pinMode(MotorA2, OUTPUT);
pinMode(MotorB1, OUTPUT);
pinMode(MotorB2, OUTPUT);
pinMode(MotorC1, OUTPUT);
pinMode(MotorC2, OUTPUT);
pinMode(MotorD1, OUTPUT);
pinMode(MotorD2, OUTPUT);
Serial.begin(115200); // make sure your Serial Monitor is also set at this baud rate.
Dabble.begin("REX_ROBOT"); //set bluetooth name of your device
}
void loop() {
//Print of servo motor position on Serial Port
/*Serial.println(position1);
Serial.println(position2);
Serial.println(position3);
Serial.println(position4);*/
//This function is used to keep information coming from the mobile device up to date.
Dabble.processInput();
stop();
if (GamePad.isSelectPressed()) {
motorType = SERVO_MOTOR;
digitalWrite(horn, HIGH);
delay(100);
digitalWrite(horn, LOW);
delay(1);
int position1 = 90;
int position2 = 90;
int position3 = 90;
int position4 = 90;
}
if (GamePad.isStartPressed()) {
motorType = DC_MOTOR;
digitalWrite(horn, HIGH);
delay(100);
digitalWrite(horn, LOW);
delay(1);
digitalWrite(horn, HIGH);
delay(100);
digitalWrite(horn, LOW);
delay(1);
}
switch (motorType) {
case DC_MOTOR:
//Serial.println("DC Turn On");
dc_motor();
break;
case SERVO_MOTOR:
//erial.println("Servo Turn On");
servo_motor();
break;
}
//Serial.println('\t');
int a = GamePad.getAngle();
/*Serial.print("Angle: ");
Serial.print(a);
Serial.print('\t');*/
int b = GamePad.getRadius();
/*Serial.print("Radius: ");
Serial.print(b);
Serial.print('\t');*/
float c = GamePad.getXaxisData();
/*Serial.print("x_axis: ");
Serial.print(c);
Serial.print('\t');*/
float d = GamePad.getYaxisData();
/*Serial.print("y_axis: ");
Serial.println(d);
Serial.println();*/
}
void servo_motor() {
if (GamePad.isUpPressed()) {
if (position2 > 0) {
position2 = position2 - 1;
}
}
if (GamePad.isDownPressed()) {
if (position2 < 140) {
position2 = position2 + 1;
}
}
if (GamePad.isRightPressed()) {
if (position1 < 140) {
position1 = position1 + 1;
}
}
if (GamePad.isLeftPressed()) {
if (position1 > 40) {
position1 = position1 - 1;
}
}
if (GamePad.isSquarePressed()) {
if (position4 < 160) {
position4 = position4 + 1;
}
}
if (GamePad.isCirclePressed()) {
if (position4 > 90) {
position4 = position4 - 1;
}
}
if (GamePad.isCrossPressed()) {
if (position3 > 30) {
position3 = position3 - 1;
}
}
if (GamePad.isTrianglePressed()) {
if (position3 < 150) {
position3 = position3 + 1;
}
}
delay(10);
Servo1.write(position1);
Servo2.write(position2);
Servo3.write(position3);
Servo4.write(position4);
}
void dc_motor() {
if (GamePad.isUpPressed()) {
forward();
}
if (GamePad.isDownPressed()) {
backward();
}
if (GamePad.isLeftPressed()) {
left();
}
if (GamePad.isRightPressed()) {
right();
}
if (GamePad.isSquarePressed()) {
}
if (GamePad.isCirclePressed()) {
for (int i = 0; i < 3; i++) {
forward();
digitalWrite(horn, HIGH);
delay(300);
digitalWrite(horn, LOW);
delay(300);
left();
digitalWrite(horn, HIGH);
delay(400);
digitalWrite(horn, LOW);
delay(300);
right();
digitalWrite(horn, HIGH);
delay(500);
digitalWrite(horn, LOW);
delay(300);
digitalWrite(horn, HIGH);
delay(600);
digitalWrite(horn, LOW);
left();
delay(300);
}
}
if (GamePad.isCrossPressed()) {
//Serial.print("DC Cross");
digitalWrite(horn, HIGH);
delay(200);
digitalWrite(horn, LOW);
delay(1);
}
if (GamePad.isTrianglePressed()) {
//Serial.print("DC Triangle");
Servo1.write(90);
Servo2.write(90);
Servo3.write(90);
Servo4.write(90);
}
}
void forward() {
digitalWrite(MotorA1, HIGH);
digitalWrite(MotorA2, LOW);
digitalWrite(MotorB1, HIGH);
digitalWrite(MotorB2, LOW);
digitalWrite(MotorC1, HIGH);
digitalWrite(MotorC2, LOW);
digitalWrite(MotorD1, HIGH);
digitalWrite(MotorD2, LOW);
}
void right() {
digitalWrite(MotorA1, HIGH);
digitalWrite(MotorA2, LOW);
digitalWrite(MotorB1, HIGH);
digitalWrite(MotorB2, LOW);
digitalWrite(MotorC1, LOW);
digitalWrite(MotorC2, HIGH);
digitalWrite(MotorD1, LOW);
digitalWrite(MotorD2, HIGH);
}
void left() {
digitalWrite(MotorA1, LOW);
digitalWrite(MotorA2, HIGH);
digitalWrite(MotorB1, LOW);
digitalWrite(MotorB2, HIGH);
digitalWrite(MotorC1, HIGH);
digitalWrite(MotorC2, LOW);
digitalWrite(MotorD1, HIGH);
digitalWrite(MotorD2, LOW);
}
void stop() {
digitalWrite(MotorA1, LOW);
digitalWrite(MotorA2, LOW);
digitalWrite(MotorB1, LOW);
digitalWrite(MotorB2, LOW);
digitalWrite(MotorC1, LOW);
digitalWrite(MotorC2, LOW);
digitalWrite(MotorD1, LOW);
digitalWrite(MotorD2, LOW);
}
void backward() {
digitalWrite(MotorA1, LOW);
digitalWrite(MotorA2, HIGH);
digitalWrite(MotorB1, LOW);
digitalWrite(MotorB2, HIGH);
digitalWrite(MotorC1, LOW);
digitalWrite(MotorC2, HIGH);
digitalWrite(MotorD1, LOW);
digitalWrite(MotorD2, HIGH);
}
ArmBot MicroPython Code
from machine import Pin, PWM
import bluetooth
from rex import BLESimplePeripheral, Servo
import time
# Create a Bluetooth Low Energy (BLE) object
ble = bluetooth.BLE()
# Create an instance of the BLESimplePeripheral class with the BLE object
sp = BLESimplePeripheral(ble)
#motorA
motor_A1 = PWM(Pin(15))
motor_A1.duty_u16(0)
motor_A2 = PWM(Pin(23))
motor_A2.duty_u16(0)
#motorB
motor_B1 = PWM(Pin(32))
motor_B1.duty_u16(0)
motor_B2 = PWM(Pin(33))
motor_B2.duty_u16(0)
#motorC
motor_C1 = PWM(Pin(5))
motor_C1.duty_u16(0)
motor_C2 = PWM(Pin(4))
motor_C2.duty_u16(0)
#motorD
motor_D1 = PWM(Pin(27))
motor_D1.duty_u16(0)
motor_D2 = PWM(Pin(14))
motor_D2.duty_u16(0)
#servo
Servo1 = Servo(2)
Servo2 = Servo(26)
Servo3 = Servo(18)
Servo4 = Servo(19)
#buzzer
buzzer = Pin(25, Pin.OUT)
position1 = 90;
position2 = 90;
position3 = 90;
position4 = 90;
playBuzzer = 0
buzzerStartTime = 0
Motor_Type = 0
#motor types (default is 0)
DC_Motor = 0
Servo_Motor = 1
#default motor speed
MotorSpeed = 65535
def forward(speed):
motor_A1.duty_u16(speed)
motor_A2.duty_u16(0)
motor_B1.duty_u16(speed)
motor_B2.duty_u16(0)
motor_C1.duty_u16(speed)
motor_C2.duty_u16(0)
motor_D1.duty_u16(speed)
motor_D2.duty_u16(0)
def backward(speed):
motor_A1.duty_u16(0)
motor_A2.duty_u16(speed)
motor_B1.duty_u16(0)
motor_B2.duty_u16(speed)
motor_C1.duty_u16(0)
motor_C2.duty_u16(speed)
motor_D1.duty_u16(0)
motor_D2.duty_u16(speed)
def right(speed):
motor_A1.duty_u16(speed)
motor_A2.duty_u16(0)
motor_B1.duty_u16(speed)
motor_B2.duty_u16(0)
motor_C1.duty_u16(0)
motor_C2.duty_u16(speed)
motor_D1.duty_u16(0)
motor_D2.duty_u16(speed)
def left(speed):
motor_A1.duty_u16(0)
motor_A2.duty_u16(speed)
motor_B1.duty_u16(0)
motor_B2.duty_u16(speed)
motor_C1.duty_u16(speed)
motor_C2.duty_u16(0)
motor_D1.duty_u16(speed)
motor_D2.duty_u16(0)
def stop():
motor_A1.duty_u16(0)
motor_A2.duty_u16(0)
motor_B1.duty_u16(0)
motor_B2.duty_u16(0)
motor_C1.duty_u16(0)
motor_C2.duty_u16(0)
motor_D1.duty_u16(0)
motor_D2.duty_u16(0)
# Define a callback function to handle received data
def on_rx(data):
global buzzerStartTime, playBuzzer, Motor_Type, Servo_Motor, DC_Motor, position1, position2, position3, position4
print("Data received: ", data) # Print the received data
last_mode = Motor_Type
if data == b'\xff\x01\x01\x01\x02\x02\x00\x00': #select
Motor_Type = Servo_Motor
elif data == b'\xff\x01\x01\x01\x02\x01\x00\x00': #start
Motor_Type = DC_Motor
else:
Motor_Type = last_mode
if Motor_Type == Servo_Motor:
if data == b'\xff\x01\x01\x01\x02\x00\x01\x00': #up
if position2 > 0:
position2 -= 5
if data == b'\xff\x01\x01\x01\x02\x00\x02\x00': #down
if (position2 < 140):
position2 += 5
if data == b'\xff\x01\x01\x01\x02\x00\x04\x00': #left
if (position1 > 40):
position1 -= 5
if data == b'\xff\x01\x01\x01\x02\x00\x08\x00': #right
if (position1 < 140):
position1 += 5
if data == b'\xff\x01\x01\x01\x02\x04\x00\x00': #trigle
if (position3 < 150):
position3 += 5
if data == b'\xff\x01\x01\x01\x02 \x00\x00': #square
if (position4 < 160):
position4 += 5
if data == b'\xff\x01\x01\x01\x02\x08\x00\x00': #circle
if (position4 > 90):
position4 -= 5
if data == b'\xff\x01\x01\x01\x02\x10\x00\x00': #cross
if (position3 > 30):
position3 -= 5
Servo1.move(position1)
Servo2.move(position2)
Servo3.move(position3)
Servo4.move(position4)
else:
if data == b'\xff\x01\x01\x01\x02\x00\x01\x00': #up
forward(MotorSpeed)
elif data == b'\xff\x01\x01\x01\x02\x00\x02\x00': #down
backward(MotorSpeed)
elif data == b'\xff\x01\x01\x01\x02\x00\x04\x00': #left
left(MotorSpeed)
elif data == b'\xff\x01\x01\x01\x02\x00\x08\x00': #right
right(MotorSpeed)
elif data == b'\xff\x01\x01\x01\x02\x04\x00\x00': #trigle
print("trigle")
elif data == b'\xff\x01\x01\x01\x02 \x00\x00': #square
print("square")
elif data == b'\xff\x01\x01\x01\x02\x08\x00\x00': #circle
print("circle")
elif data == b'\xff\x01\x01\x01\x02\x10\x00\x00': #cross
buzzerStartTime = time.ticks_ms()
playBuzzer = 1
buzzer.value(1)
else:
stop()
while True:
currentTime = time.ticks_ms()
if (playBuzzer == 1) and (time.ticks_diff(currentTime, buzzerStartTime) > 1000):
buzzer.value(0)
playBuzzer = 0
if sp.is_connected(): # Check if a BLE connection is established
sp.on_write(on_rx) # Set the callback function for data reception
