REX Pin Diagram

REX Main

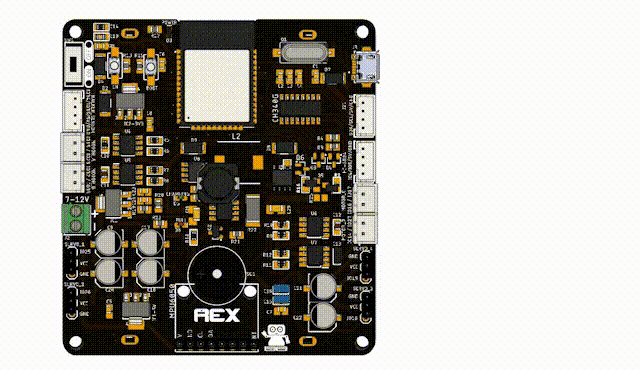

../_images/rexmain.gif

ESP32 WROOM 32E Pinout

Warning

Please do not connect an external battery, if you use 18650 batteries while using the card.

../_images/rex-mainboard.png

Pin Connection Tables

  • DC Motor Pins

Motor-A

GPIO

Explanation

Motor-B

GPIO

Explanation

M_A1

15

Forward

M_B1

32

Forward

M_A2

23

Backward

M_B2

33

Backward

Motor-C

GPIO

Explanation

Motor-D

GPIO

Explanation

M_C1

5

Forward

M_D1

27

Forward

M_C2

4

Backward

M_D2

14

Backward

  • Servo Motor Pins

Servo Pins

GPIO

Explanation

Servo Pins

GPIO

Explanation

Servo-1

2

Powered by 6V

Servo-3

18

Powered by 6V

Servo-2

26

Powered by 6V

Servo-4

19

Powered by 6V

  • Ultrasonic Distance Sensor

Ultrasonic Dİstance Sensor

GPIO

Explanation

TRIG

17

Pin is used to trigger ultrasonic sound pulses

ECHO

16

By measuring the time the Echo pin stays high, the distance can be calculated

  • I2C Pins

I2C

GPIO

Explanation

SCL

22

Connected Yellow Connection Cable

SDA

21

Connected White Connection Cable

  • Buzzer Pin

Buzzer

GPIO

Explanation

Buzzer

25

Connected pin 25

  • MPU6050 Pins

MPU6050

GPIO

Explanation

SCL

22

I2C Communication

SDA

21

I2C Communication

INT

13

interrupt pin
