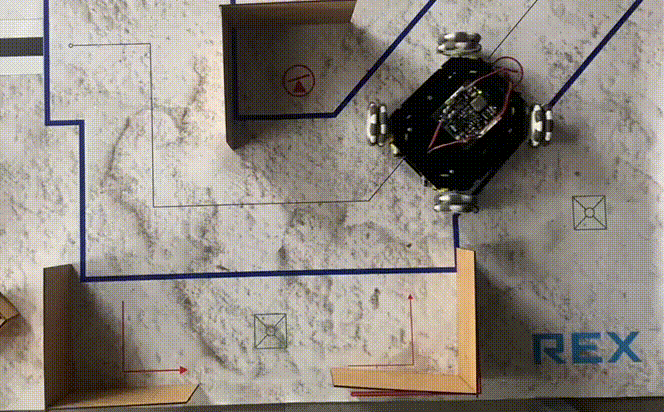

OmniBot
Thanks to its special omni wheels, OmniBot provides easy access to every point without making any rotational movement. Using OmniBot, you can reach hard-to-reach any points very easily. This robot is designed to reach hard-to-reach spots.
Omni wheels combines the freedom of 360 degrees movement with the stability of a fixed mounting. This is achieved through a design which uses integral rollers rather than a swivel mount. In this way, OmniBot provides advantages such as 360° maneuverability, better directional control-following and precise positioning.
OmniBot Arduino C Code
//"""REX 8in1 Omni Bot"""
//Check the web site for Robots https://rex-rdt.readthedocs.io/en/latest/
#include <DabbleESP32.h>
#include <Arduino.h>
//define pins of motors
#define MotorA1 15 // Forward
#define MotorA2 23 // Backward
#define MotorB1 32 // Forward
#define MotorB2 33 // Backward
#define MotorC1 5 // Forward
#define MotorC2 4 // Backward
#define MotorD1 27 // Forward
#define MotorD2 14 // Backward
//define buzzer pin named "horn"
#define horn 25
//define speed of motors
#define low_s 100
#define mid_s 150
#define high_s 250
// setting PWM properties
const int freq = 50;
const int PWMchannel_1 = 4;
const int PWMchannel_2 = 5;
const int PWMchannel_3 = 6;
const int PWMchannel_4 = 7;
const int PWMchannel_5 = 8;
const int PWMchannel_6 = 9;
const int PWMchannel_7 = 10;
const int PWMchannel_8 = 11;
const int resolution = 8;
void setup() {
pinMode(horn, OUTPUT);
pinMode(MotorA1, OUTPUT);
pinMode(MotorA2, OUTPUT);
pinMode(MotorB1, OUTPUT);
pinMode(MotorB2, OUTPUT);
pinMode(MotorC1, OUTPUT);
pinMode(MotorC2, OUTPUT);
pinMode(MotorD1, OUTPUT);
pinMode(MotorD2, OUTPUT);
ledcSetup(PWMchannel_1, freq, resolution);
ledcAttachPin(MotorA1, PWMchannel_1);
ledcSetup(PWMchannel_2, freq, resolution);
ledcAttachPin(MotorA2, PWMchannel_2);
ledcSetup(PWMchannel_3, freq, resolution);
ledcAttachPin(MotorB1, PWMchannel_3);
ledcSetup(PWMchannel_4, freq, resolution);
ledcAttachPin(MotorB2, PWMchannel_4);
ledcSetup(PWMchannel_5, freq, resolution);
ledcAttachPin(MotorC1, PWMchannel_5);
ledcSetup(PWMchannel_6, freq, resolution);
ledcAttachPin(MotorC2, PWMchannel_6);
ledcSetup(PWMchannel_7, freq, resolution);
ledcAttachPin(MotorD1, PWMchannel_7);
ledcSetup(PWMchannel_8, freq, resolution);
ledcAttachPin(MotorD2, PWMchannel_8);
Serial.begin(115200); // make sure your Serial Monitor is also set at this baud rate.
Dabble.begin("REX_ROBOT"); //set bluetooth name of your device
}
void loop() {
delay(20);
Dabble.processInput();
Serial.println('\t');
int a = GamePad.getAngle();
Serial.print("Angle: ");
Serial.print(a);
Serial.print('\t');
int b = GamePad.getRadius();
Serial.print("Radius: ");
Serial.print(b);
Serial.print('\t');
if (GamePad.isCrossPressed())
{
digitalWrite(horn, HIGH);
delay(100);
digitalWrite(horn, LOW);
delay(1);
}
if (GamePad.isSquarePressed())
{
Serial.print("Square");
}
//Forward
if (a > 60 && a < 120 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, low_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, low_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, low_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, low_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a > 60 && a < 120 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, mid_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, mid_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, mid_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, mid_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a > 60 && a < 120 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, high_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, high_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, high_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, high_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
//Backward
else if (a > 240 && a < 300 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, low_s); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, low_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, low_s); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, low_s); //MotorD2
}
else if (a > 240 && a < 300 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, mid_s); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, mid_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, mid_s); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, mid_s); //MotorD2
}
else if (a > 240 && a < 300 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, high_s); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, high_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, high_s); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, high_s); //MotorD2
}
//Right (0-30)
else if (a >= 0 && a < 30 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, low_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, low_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, low_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, low_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 0 && a < 30 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, mid_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, mid_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, mid_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, mid_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 0 && a < 30 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, high_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, high_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, high_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, high_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
//Right (330-360)
else if (a > 330 && a < 360 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, low_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, low_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, low_s); //MotorC2
ledcWrite(PWMchannel_7, low_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a > 330 && a < 360 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, mid_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, mid_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, mid_s); //MotorC2
ledcWrite(PWMchannel_7, mid_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a > 330 && a < 360 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, high_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, high_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, high_s); //MotorC2
ledcWrite(PWMchannel_7, high_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
//Left
else if (a > 150 && a < 210 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, low_s); //MotorA2
ledcWrite(PWMchannel_3, low_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, low_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, low_s); //MotorD2
}
else if (a > 150 && a < 210 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, mid_s); //MotorA2
ledcWrite(PWMchannel_3, mid_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, mid_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, mid_s); //MotorD2
}
else if (a > 150 && a < 210 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, high_s); //MotorA2
ledcWrite(PWMchannel_3, high_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, high_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, high_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
//Right-Forward
else if (a >= 30 && a <= 60 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, low_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, low_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 30 && a <= 60 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, mid_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, mid_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 30 && a <= 60 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, high_s); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, high_s); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
//Left-Forward
else if (a >= 120 && a <= 150 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, low_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, low_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 120 && a <= 150 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, mid_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, mid_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 120 && a <= 150 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, high_s); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, high_s); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
//Right-Backward
else if (a >= 210 && a <= 240 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, low_s); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, low_s); //MotorD2
}
else if (a >= 210 && a <= 240 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, mid_s); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, mid_s); //MotorD2
}
else if (a >= 210 && a <= 240 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, high_s); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, high_s); //MotorD2
}
//Right-Backward
else if (a >= 300 && a <= 330 && b >= 1 && b <= 3)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, low_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, low_s); //MotorD2
}
else if (a >= 300 && a <= 330 && b > 3 && b <= 5)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, mid_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, mid_s); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
else if (a >= 300 && a <= 330 && b > 5 && b <= 7)
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, high_s); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, high_s); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
/////////////////////////////DUR////////////////////////////////////
else
{
ledcWrite(PWMchannel_1, 0); //MotorA1
ledcWrite(PWMchannel_2, 0); //MotorA2
ledcWrite(PWMchannel_3, 0); //MotorB1
ledcWrite(PWMchannel_4, 0); //MotorB2
ledcWrite(PWMchannel_5, 0); //MotorC1
ledcWrite(PWMchannel_6, 0); //MotorC2
ledcWrite(PWMchannel_7, 0); //MotorD1
ledcWrite(PWMchannel_8, 0); //MotorD2
}
}
